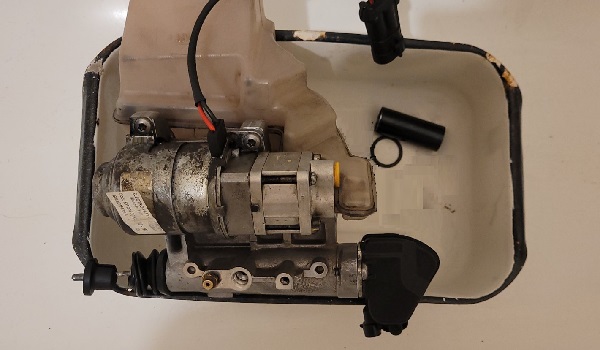

The QR512E-1707018AB repair kit is installed on the valve block QR512E-1707001ab of the robotic gearbox of the Chery QQ car and includes: two cuffs on the piston of the clutch drive qr512e-1707018ab, the inner tube of the actuator body, the body seal qr512e-1707025 and the clutch position sensor QR512E-17015.70 A simplified clutch drive repair scheme is given at the end of the repair kit description.
Breakdown of the chery QQ automatic transmission clutch actuator may be accompanied by the following symptoms:
1. When the "sun" check on the gearbox lights up on the instrument panel and the corresponding errors P1810 or P1743.
2. Can't shift any gear, shift into reverse, start after shifting, and can automatically shift into neutral while driving.
3. The robot box goes into emergency mode, which allows you to turn on only the first, second and reverse gears.
The easiest way to remove and install the robotic gearbox clutch actuator is by removing the Clutch Reservoir-Pump-Actuator assembly, through the top, rotating the assembly to bypass the engine cooling z-pipe. To do this, you need to disconnect: 1. The air filter housing, 2. The battery and the platform under it, 3. The strap for attaching the connectors of the remote control wiring harness and unfastening the connector of the remote control pump, 4. High-pressure pipes and the rubber "return" pipe , 4. Unfasten the connector of the clutch position sensor on the cylinder and the plastic sleeve of the cable from the foot of the manual transmission 5. Three bolts of the clutch actuator bracket.
